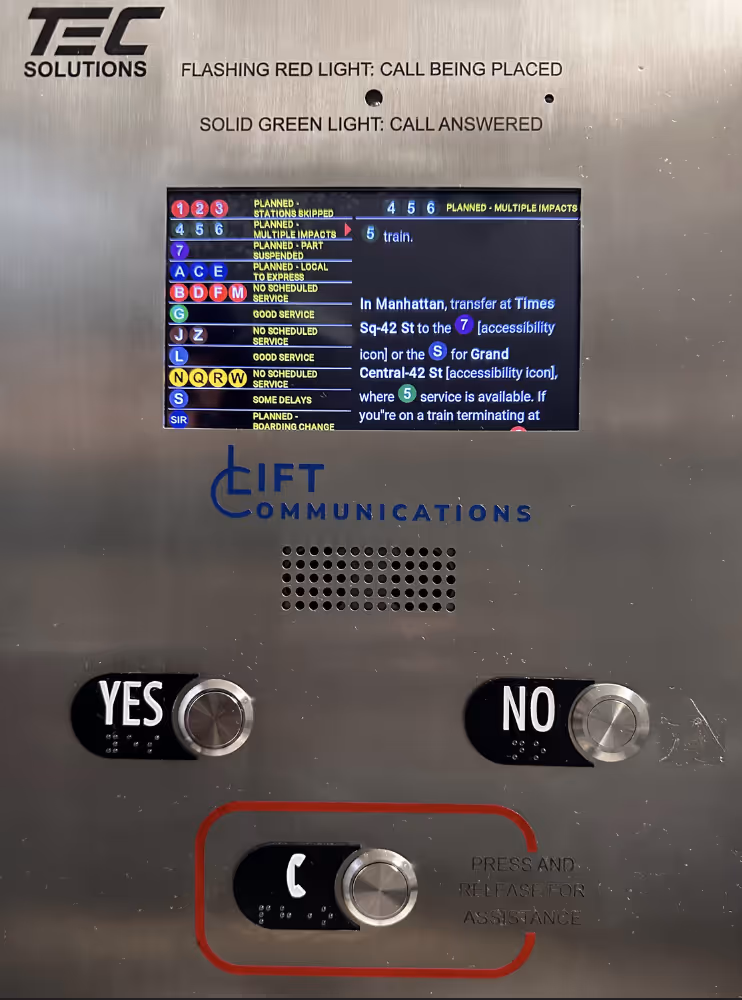

Elevator Audio-Visual-Text SIP Phone
%201.jpg)
%201.jpg)
FAQ'S
Why is the LC-EAV Series positioned as “INDUSTRIAL”?
Because it is engineered as mission-critical infrastructure, not as a general-purpose computing platform. Every design decision prioritizes reliability, availability, predictability, and long-termoperation over flexibility or low initial cost.
How is this different from Raspberry Pi–based solutions?
Raspberry Pi–based solutions rely on consumer hardware, removable storage, and general-purpose operating systems. These platforms assume failure and manage around it. The LC-EAV is purpose-built to avoid failure altogether, eliminating common points ofinstability such as SD cards, OS corruption, and unattended reboot cycles.
Isn’t Linux reliable enough?
Linux is extremely capable; but it is not deterministic by default, nor is it designed for unattended life-safety operation without significant mitigation layers.The LC-EAV removes that complexity by using a locked, controlled firmware environment specifically engineered for this application.
Does this affect inspections or compliance?
Yes, in a positive way. A deterministic, purpose-built system reduces ambiguity during inspections and removes concerns around undocumented software changes, storage degradation, or unsupported hardware revisions.
Why not just add watchdogs or backup scripts?
Watchdogs and scripts are indicators of a commodity design approach. The LC-EAV eliminates the need for them by addressing failure at the architectural level rather than reacting to it after the fact.
What is ECPS?
ECPS (Emergency Communication Path Supervision) automatically checks that your elevator's emergency call path is available 24/7, alerting you to failures before an actual emergency exposes them.
Features
7 inch 1024x600 capacitive touch screen
Reliably receives calls from elevators and can be received when the call agents are unvailable , ensuring reliable communcation with the elevator passanger.
3x alarm input ports and 1x alarm output port for customized deployments
Enables the app user to quickly call back elevators when a call has been disconnected, ensuring that communication is never lost.
Full duplex 2-way HD audio with advanced echo cancellation
Displays four video feeds from 32 cameras, which automatically changes every 20 seconds, making it easier to monitor elevator traffic.
Supports PoE to provide a network connection to the device
Keeps track of all incoming calls, missed calls and outgoing calls.
Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
Contains the list of elevators in the station so that app user can easily locate elevators and coommunicate with them directly.
When not in use, display can be used to display static Images.
Allows user to initiate calls to elevators.
Health Status, Alarms, and device configuration can be monitored using our optional TDMS system
Gives users the option to reject call when the call comes from an empty elevator.
Physical button inputs
Offers pre-set messages for app users to easily reply to elevator calls, saving time and improving communication.
ECPS supervises emergency communication readiness via SIP OPTIONS, tracking health over time and driving LEDs, relays, and logs, no real call required.
Offers pre-set messages for app users to easily reply to elevator calls, saving time and improving communication.
Protocol/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), SNMP V2/3, DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6
Network Interface
- Dual switched 10/100Mbps ports, PoE: IEEE 802.3af Class 3, <10W
Graphic Display
- 7’’ 1024×600 capacitive touch screen TFT LCD with Home key
Wi-Fi (Optional)
- Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Alarm Input
- 3 Channels, including 1 Optocoupler, Vin < 15V (IN+) and 3 Dry Contact (IN1-3), for low voltage devices such as a door sensor, other switch contact, button etc.
Alarm Output
- 1 Channel/Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for high voltage devices such as, an electric lock or light switch, Elevator Monitoring or Elevator Communications Failure Systems
LED Indicator
- Yes, Dual color LED for event indication
Micro SD/TF Supported
- Yes, up to 256G
Voice Codecs and Capabilities
- G.711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Decoders and Capabilities
- H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps
Telephony Features
- 4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc.
Operating System
- Purpose-built Linux OS
HD Audio
- Yes, Dual speakers with support for wideband audio and media play in stereo, acoustic echo cancellation
QoS
- Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language
- English, Chinese, German, Spanish, French, Italian, Portuguese, and Russian
Upgrade/Provisioning
- Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML configuration file, manual upload
Power & Green Energy Efficiency
- 2-pin DC input: 12VDC/1A
- Integrated PoE : IEEE 802.3af Class 3, power consumption <10W
- Micro USB input: 5VDC/2A
Temperature and Humidity
- Operation: -10°C to 50°C, Storage: -20°C to 60°C
- Humidity: 10% to 90% non-condensing
Physical
- Unit Dimension: 224.5 x 149.5 x 36.5mm; Unit Weight: 517g
- Entire Package Dimension: 265 x 180 x 54mm; Entire Package Weight: 880g
Compliance
- FCC, CE, RCM, IC
Elevator Code References
- ASME A17.1-2019 / CSA B44:19
- 2020 New York State Building Code (BCNYS), including applicable elevator provisions
- Other locally adopted editions of ASME A17.1 / CSA B44, as required by the authority having jurisdiction
