SIP Phone Integration Kit
Features
Bookmark Video at the Start and Stop of every emergency call to quickly recall video during an incident.
Reliably receives calls from elevators and can be received when the call agents are unvailable , ensuring reliable communcation with the elevator passanger.
Built-in speaker and microphone check with our proactive maintenance automation tasks.
Enables the app user to quickly call back elevators when a call has been disconnected, ensuring that communication is never lost.
ZeroConfig Configuration Management tool. With just a few click, provision your intercom with our included Intercom Manager Tool
Displays four video feeds from 32 cameras, which automatically changes every 20 seconds, making it easier to monitor elevator traffic.
Maintenance | AUX Button. Allow your maintenance team to communicate with the back of house ensuringe a safe work environment
Keeps track of all incoming calls, missed calls and outgoing calls.
SNMP v1, v2,and v3 for integration with NMS Systems such as Solarwind NPM, Auvik, PRTG, and more
Contains the list of elevators in the station so that app user can easily locate elevators and coommunicate with them directly.
With its full SIP protocol support the intercom easily links with IP phones, without having to connect to the server. Full peer to peer support.
Allows user to initiate calls to elevators.
Type : Signalling Protocol
- SIP 2.0 (UDP)
Type : Audio Stream
- Protocols: RTP/RTSP
- Codec: G.711
- Volume control: adjustable with automatic adaptive settings
- Full duplex: Yes (AEC)
Type : Power source
- From external source: Type 12V DC (9 – 36V DC), max. 2A
- PoE: 802.3af (Class 0 – Max. 12.95W)
Type : LAN Interface
- Number of LAN interface: 1
- PoE: 802.3af
- Parameter: 10/100BASE-TX with Auto-MDIX, RJ-45
- Recommended cable size: Cat-5e or better
Type : Audio Interface
- Microphone Input: Normal electret waterproof microphone
- Amplifier output:
- Class D amplifier, MONO output socket, THD < 1%
- Water Resistance Speaker
- Max. 5W / 8Ω
- Line out socket: 600Ω
Type : Button/keyboard interface
- Number of buttons: Up to 16 independent buttons in 4 x 4 matrix
- Matrix outputs:
- 4 (ROW1-4 terminals)
- Uout < 0.1V (L), Uout > 3.2V (H), max. 8mA
- Matrix inputs:
- 4 (COL1-4 terminals)
- Uin < 1.15V (L), Uin > 2.15V, max. Uin = 5V
Type : LED control output
- Number of output: 3 (LED1+, LED2+, LED3+ terminals)
- Output current: Typ. 20mA
- Output voltage: Max. 12V (see note 1)
Type : Digital Outputs
- Number of outputs: 2 (OUT1+, OUT2+ terminals)
- Type of output: Powered output socket with short-circuit protection
- Output voltage: 12V (see note 1)
- Active output: 7V – 11V DC / 400mA
Type : Logic Input
- Number of input: 2 (IN1+, IN2+ terminals)
- Input type: Galvanized, isolated inputs (opto-isolators)
- Parameters: Uin < 1.1V (L), Uin > 3V (H), max. Uin = 32V
Type : Relay output
- Number of output: 1 (NC, NO, COM terminals)
- Limit parameter (DC): Max. 30VDC/1A
- Limit parameter (AC): Max. 125VAC/0.3A
Type : Mechanical Properties
- Operating temperature: -40°C – 55°C
- Operating relative humidity: 10% – 95% (not-condensing)
- Storage temperature: -40°C – +70°C

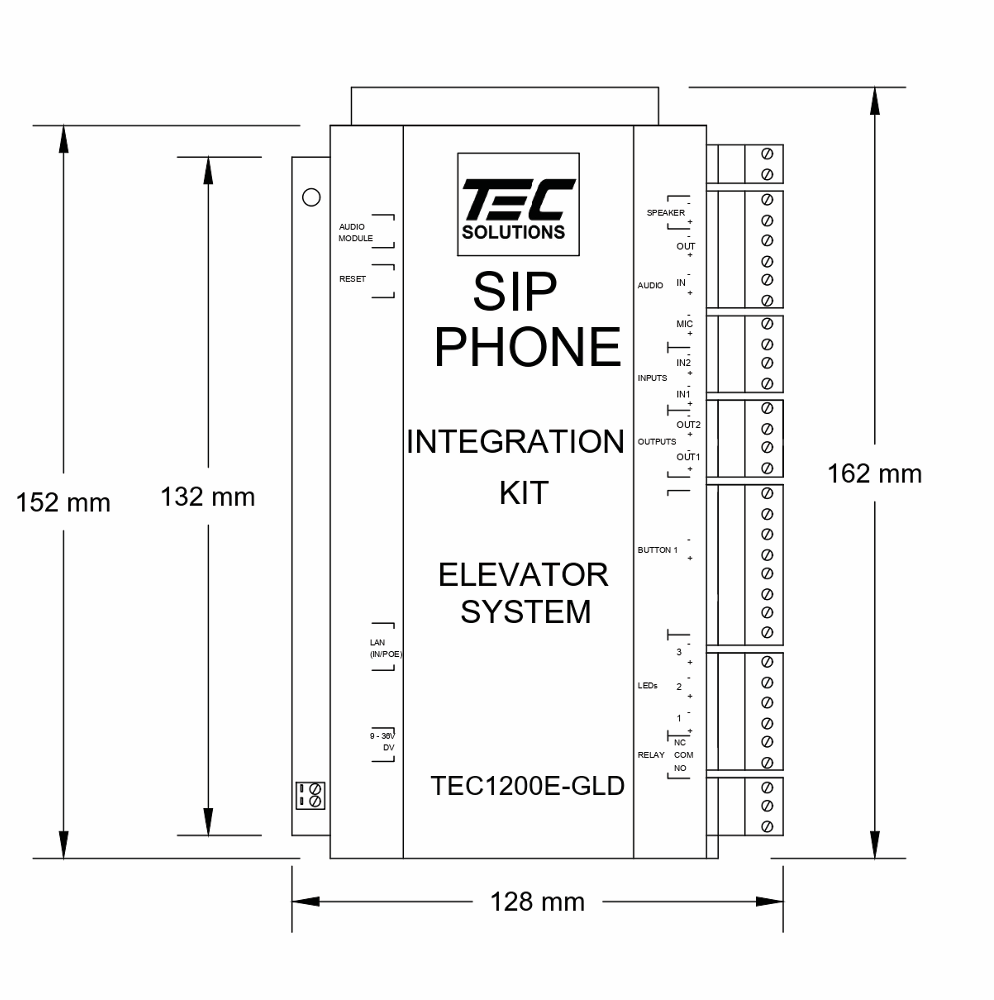

- Dimensions: 162x128x80 mm (order no. TEC1200E)
- Weight: order no. TEC1200E max. 280g
- Protection cover grade:
- IP20 (SIP phone electronic only)
- IP65 (mounted on Car Operating Panel with gasket)
- Mounting: Car Operating Panel Mounted, 4 Post mount with lock nuts
