Elevator Audio-Visual-Text SIP Phone

EAV Elevator Phone Series

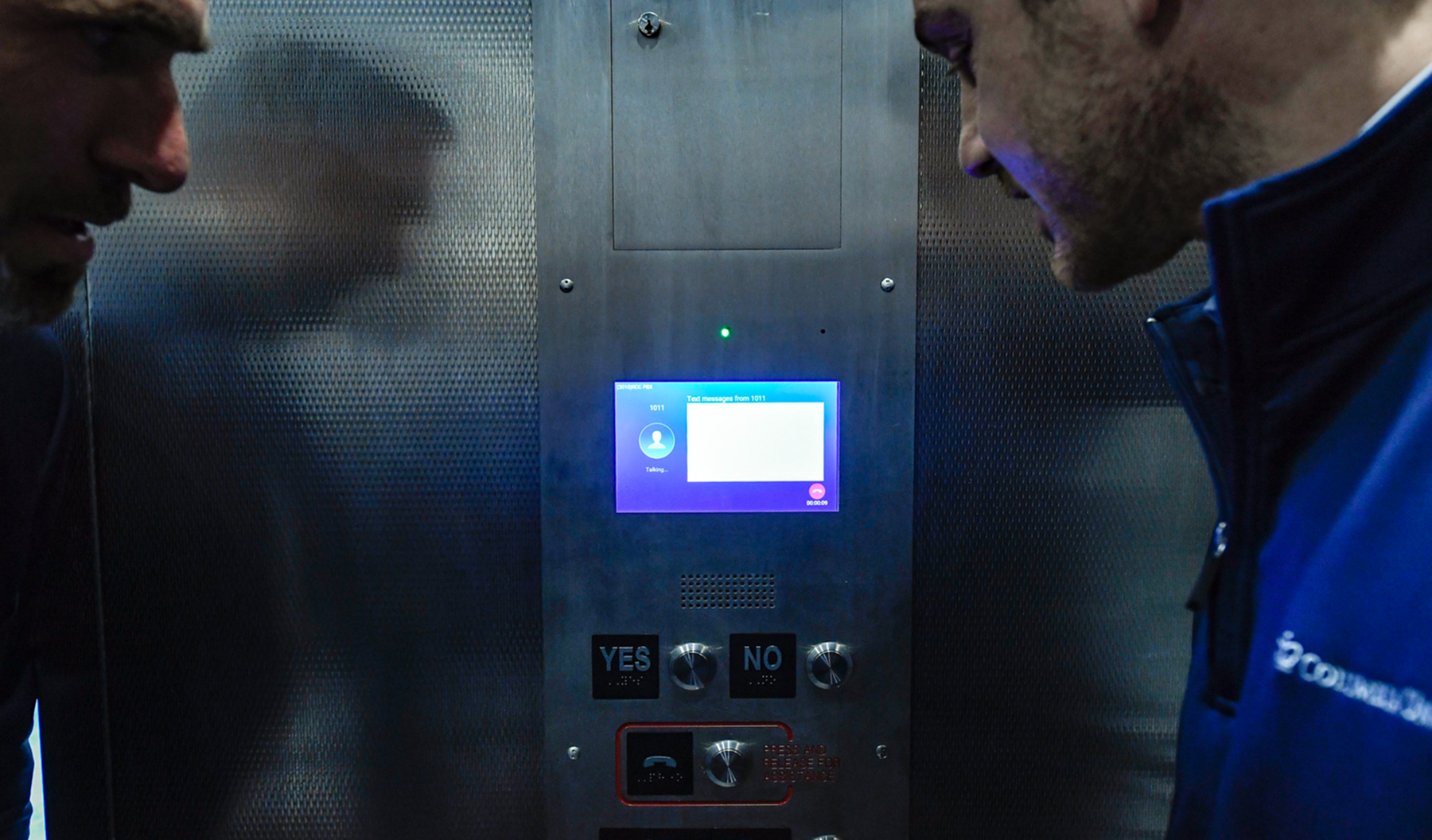

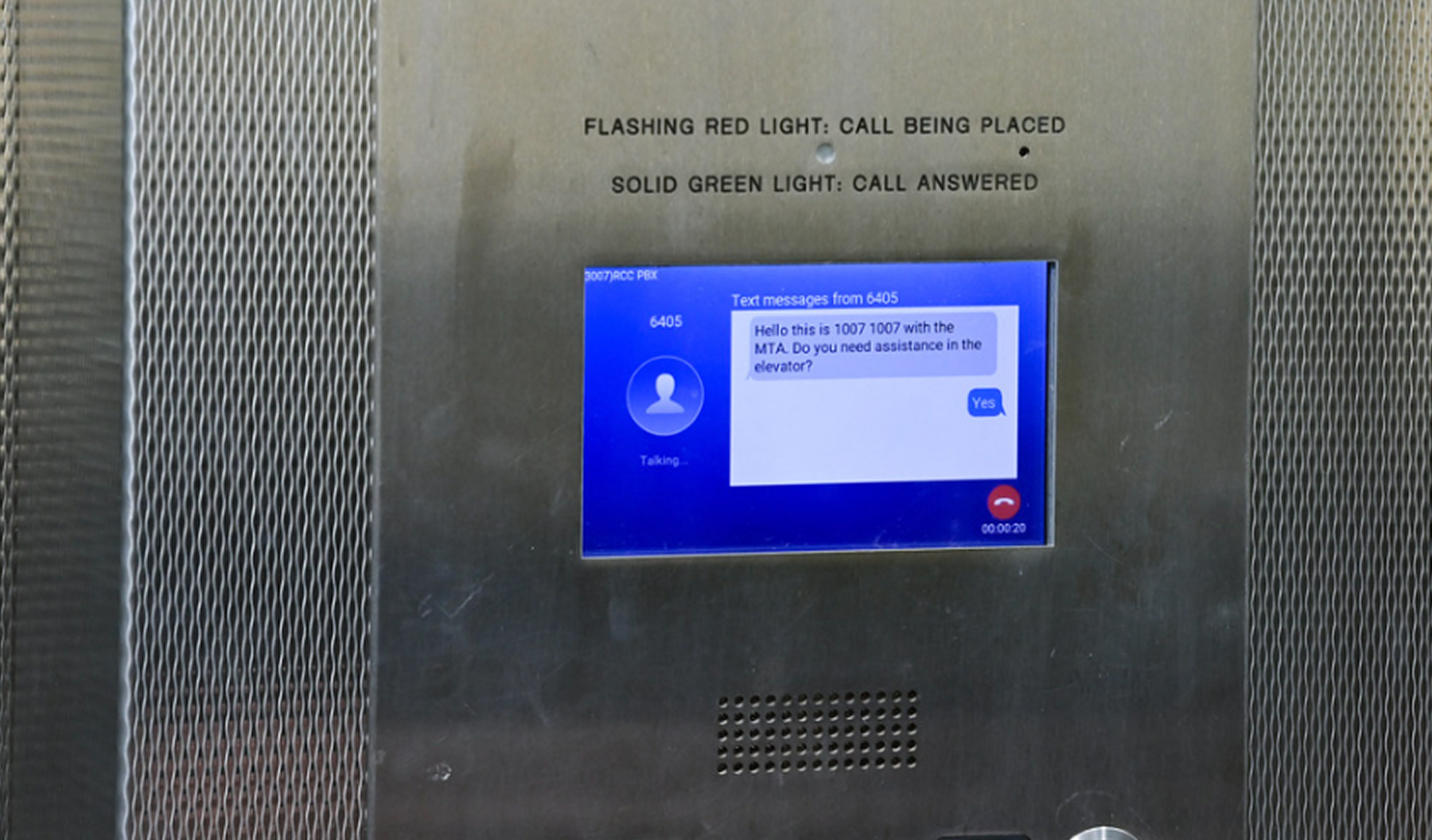

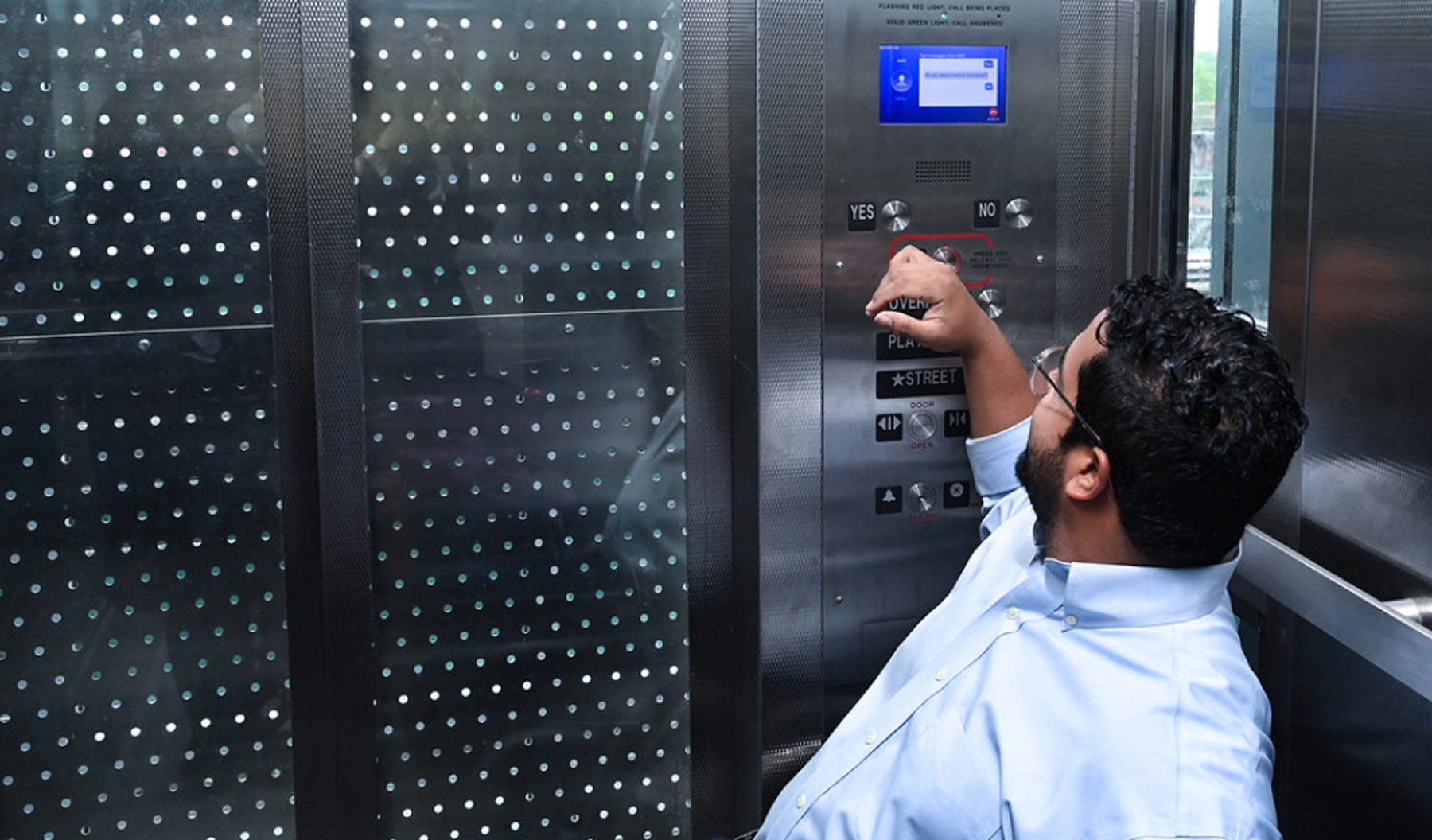

Are you looking for a ASME A17.1 2019/CSA B44-19 and IBC 2018 compliant Elevator Phone? Look no further! The TEC-1400EAV is designed to provide businesses with a dedicated device to manage elevator audio and text message communications. When not in use, it has the added benefit to provide news, stock, weather, advertising, and more, enhancing the customer experience. It is a formidable emergency intercom with elevator information and an advertising station. This product can be easily mounted behind several Elevator Car operating panel manufacturers. It features a 7-inch screen LCD and full-duplex video. This SIP intercom has three inputs, Push for Help, Yes, and No buttons to reply to Responder's text messages in the event they need to communicate with someone who can not speak.

Features

7 inch 1024x600 capacitive touch screen

Reliably receives calls from elevators and can be received when the call agents are unvailable , ensuring reliable communcation with the elevator passanger.

4x alarm input ports and 1x alarm output port for customized deployments

Enables the app user to quickly call back elevators when a call has been disconnected, ensuring that communication is never lost.

Full duplex 2-way HD audio with advanced echo cancellation

Displays four video feeds from 32 cameras, which automatically changes every 20 seconds, making it easier to monitor elevator traffic.

Supports PoE to provide a network connection to the device

Keeps track of all incoming calls, missed calls and outgoing calls.

Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts

Contains the list of elevators in the station so that app user can easily locate elevators and coommunicate with them directly.

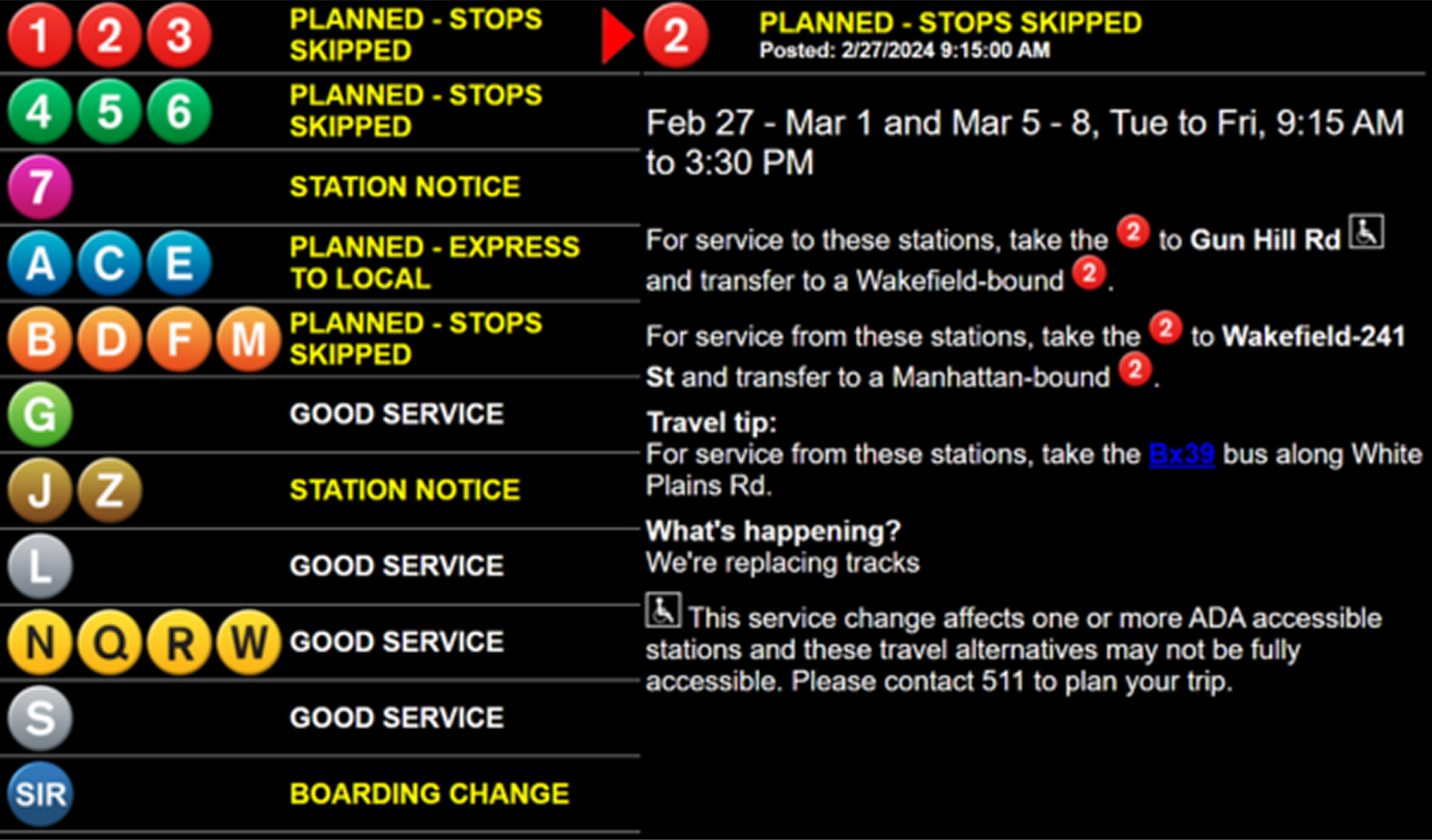

When not in use, display can be used to display news, weather, advertising,stocks, and many other web based feeds.

Allows user to initiate calls to elevators.

Health Status, Alarms, and device configuration can be monitored using our optional TDMS system

Gives users the option to reject call when the call comes from an empty elevator.

Physical button text customizable.Optional dynamic soft buttons can be added to touch display

Offers pre-set messages for app users to easily reply to elevator calls, saving time and improving communication.

Type : Power

- Input : DC44V~57V/1A

- Output : POE30W/POE60W

Type : Transfer

- Transmission Media : Coaxial cable, twisted pair, telephone line, RVV line

- Transmission distance (2×0.75 square millimeter RVV line) : 500 M

- Maximum throughput : 45Mbps

- Multicast : Support IGMP multicast protocol

Type : Connector

- Power input (DC_IN) : 2.1-5.5mm DC socket

- Power output (DC_OUT) : RJ45 (30W: 1,2,3,6; 60W: 1,2,3,6,4,5,7,8)

- Ethernet (data) : RJ45 (1,2 and 3,6)

- Twisted pair signal input and output (TP) : 5.08mm×2 Screw type industrial terminal

- Ground wire : Shell ground

Type : Indicator Line

- Master : The indicator light of the host, it is on when the switch is turned to M, and it is off when the switch is turned to S (select the switch   position before powering on)

- Link : The signal connection light is on when the TP signal is connected, and not on when the TP signal is not connected.

- Power : The power indicator light is always on after power on.

- RJ45 Green : Network communication indicator light flashes when communicating.

- RJ45 Yellow : POE indicator, on when POE open, flashing when overload or undervoltage.

Type : Appearance

- Size : 105×95×24 mm

- Color : Black

- Net Weight : 190g

Type : Environment Requirement

- Working Temperature : -20℃~70℃

- Humidity : 0-95%

- Storage humidity : -40℃~85℃
