Type : CPU

• Intel Core i7-7700
• Intel Xenon E3-1275 v6
• Other pin-compatible CPUs are available for large volume orders

Type : Chipset

• Intel C236 Chipset

Type : RAM

• Up to 64 GB DDR4 ECC | non-ECC
• 4x DIMM DDRA-2400/2133 ECC | Non-ECC (unbuffered)

Type : Storage

• 2x NVMe | SATA
• 4 x 2.5" HDD | SSD
• Optional NVM3 card with 3x NVMe

Type : Graphics & Display

• Integrated Intel HD Graphics 630
• 2x DisplayPort 1.2 - 4K @ 60Hz
• HDMI 1.4 - 4K @ 24 Hz
• Optional Graphics Card:
  • NVIDIA GTX 1060 6 GB
  • Quadro P4000 8 GB
  • Quadro: 4x DisplayPort 1.4 - 5K @ 60 Hz | 4K @ 120 Hz
  • GTX 1060: 3x DisplayPort 1.4 - 4K @ 120 Hz + HDMI 2.0b 4K @ 60 Hz

Type : Networking

• LAN: On-board Dual Gbit Ethernet (Intel I219 + Intel I210)
• Optional FACE Module: 4x GbE | 4x GbE + PoE | 2x Optical LAN | Ethernet bypass
• Wireless LAN:
  • 802.11ac dual antenna + BT 4.2
  • Add-on M.2 E-key 2230 + 2x RP-SMA antennas
  • User can install another Wireless LAN adapter
• Cellular communication:
  • LTE/WCDMA/GSM/GNSS
  • Add-on M.2 B-key 3042 + 2x RP-SMA antennas
  • On-board micro-SIM socket

Type : I/O

• USB:
  • 6x USB 3.0 type-A on-board
  • Optional 2 to 4 USB ports on FACE Module
• Audio:
  • On-board Realtek ALC1150 audio codec with line-out | mic | optical S/PDIF
  • FM-AT2 FACE Module with front line-out | mic
  • Audio over HDMI | DP
• 3x RS232 Serial Port:
  • 2x full-UART + 1x RX/TX
  • Extra 6 serial ports available with optional FM-SER FACE Module

Type : Extensions

• FACE Module
• PCIe x16 Standard-height single-slot
  • Used for discrete graphics card (GeForce or Quadro) / NVM3 Card / another full-height PCIe card
• M.2 E-key
  • Normally used for optional WiFi and 4G card
• M.2 B-key + micro SIM socket

Type : Extra Features

• Natural airflow (NAF) cooling: Fanless natural convection cooling with no moving part
• Redundant power: 2x DC inputs with automatic failover
• Trusted platform module 2.0
• Integrated Interactive Information Monitor:
  • Integrated OLED display with navigation keypad for real time power consumption, temperatures and system information
• Digital power & reset management using FPGA:
  • Provides precise power-sequencing timing and system voltage monitoring
• Clamshell opening | tool-free service:
  • Case opens by pressing the top-bar
  • RAM modules and HDD-cartridge require no tools for installation
• System diagnostic LEDs:
  • Discrete LED indicators of RAM detection, BIOS post HDMI and DisplayPort detection
• Auto-on:
  • System boots automatically when power is resumed

Type : BIOS & OS

• BIOS: AMI Aptio V
• Operating Systems:
  • Windows 10 Professional | Linux Mint
  • Compatible with other Windows 10 variants
  • Compatible with other Linux variants
  • Compatible with other hypervisors and operating system (e.g. ESXi, FreeBSD)

Type : Power

• Input voltage range: 19V–24V (+/-10%)
• Power consumption: (8W–240W)
• Power consumption depends on:
  • CPU and graphics card
  • System load
  • Installed devices
  • Connected peripherals

Type : Temperature & Humidity

• Operating temperature range: Up to -40°C to 70°C
• Relative humidity: 5% - 95% non-condensing

Type : Mechanical Specification

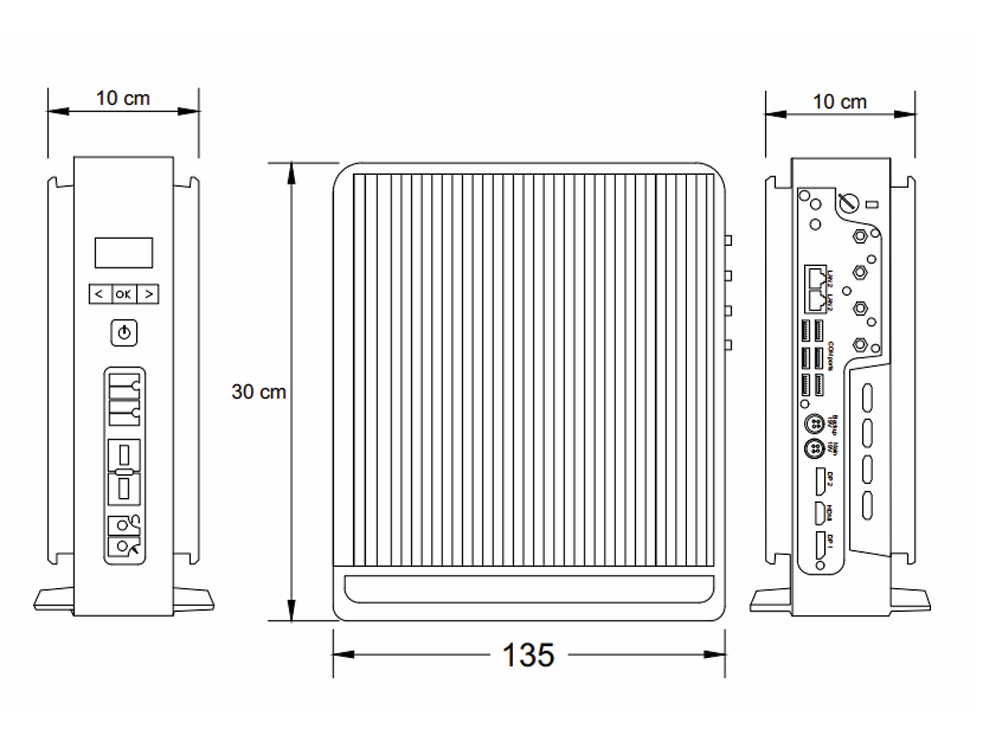

Type : Dimensions & Weight

• Dimensions: 10 cm (W) x 30 cm (H) x 25.5 cm (D)
• Weight depends on configuration
• Weight: 6 Kg to 9 Kg

Type : Housing & Cooling

• All aluminum housing
• Natural airflow cooling (fanless)

Type : Mounting

• Wall mounting bracket (sold separately)
• DIN-rail mounting bracket

‍
